Single Shaft Paddle Mixer

What is it?

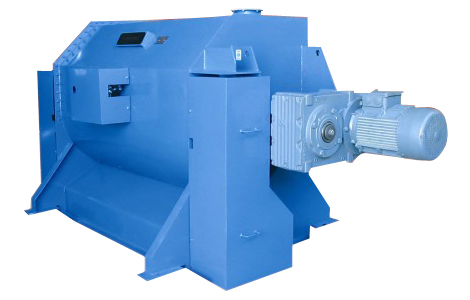

Single Rotor Paddle Mixer

Guarantee a perfect mix with this horizontal Single Shaft Paddle Mixer or Double Shaft Batch Mixer from A&J Mixing Technology, Canada. It is our most popular, ideal machine for a high throughput and for economic operations. This is a very versatile machine and is ideal for adding shear.

How it works?

The unique single paddle design divides the housing into zones each served by at least two paddles. All moving particles create a dynamic interaction between the zones. Voids are created mechanically and particles are directed to randomly fill the voids. The high volume of voids created achieves the speed of mixing. Accuracy is achieved by limiting the size of the void so particles do not roll apart.

Why?

  • Fast accurate mixing
  • Repeat performance
  • Low intensity; gentle mixing, hence, no degradation.
  • Low operating cost, high production volume
  • Quick drop bottom discharge

Other Add Ons

  • Optional shearmakers provision with the motors assures for meeting the special process demand such as dispersion / colouring and de-lumping etc.
  • Spray bar with nozzles for liquid addition
  • Jacket arrangements for heating or cooling
  • CIP System to clean interiors quickly and efficiently.
Special Feature

Retrofit of Ribbotn Blender with A&J Mixing Tools

Overcome the bottleneck of a ribbon blender with Toshniwal. Retrofit the ribbon blender by replacing the existing ribbons with the A&J Mixing single shaft from Phlauer Technology of Canada.

The advantage of retrofitting is to achieve a good homogeneous mix, short mixing time and no heat generation. Also, no degradation, quick discharge and a high throughput. This also overcomes the maintenance of the ribbons, which always wears out resulting in low quality of extended mixing time. Quality of the mix is guaranteed batch after batch for extended period.

single padder

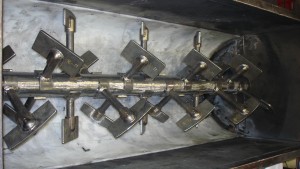

single padder-2
